Pro Dimming

LDX-403-CV

4 channel PWM controller for constant voltage LED strips.
Requires an external power supply.

Width: 210 mm
Height: 100 mm
Depth: 80 mm

4 channels of PWM controls x 3A ( 12 VDC 36W / 24V 72W per channel )
Smooth dimming for LED strips.
Smooth dimming for LED strips.
LDX-403-S Single channel version for 10A load rating. ( 12V 100W / 24V 200W All 4 channels to be paralleled )

Direct channel intensity & fade time control.
Scene fade time programmable between 0 – 250 seconds.
16 groups or areas.
Internal non volatile memory for 60 scenes.

RAYNET RS-485 protocol & command set.
Third party control via RS-485.
DMX-512 protocol selection using DIP switch 10.
DMX OK led indicator for valid DMX signal.

iOS and Android phone control via Touchmate app and Raylogic control system.
iOS & Android control via the GO app and GRB hardware.
Control via Raylogic’s Keypads direct on RAYNET BUS.
Third party switch control via external processor / Raylogic SCI interface.
DMX-512 control via DMX control desks / software & hardware.

Voice control requires the GO app & GRB hardware along with this product.
Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service

Enquiry Now

    Enquiry Now

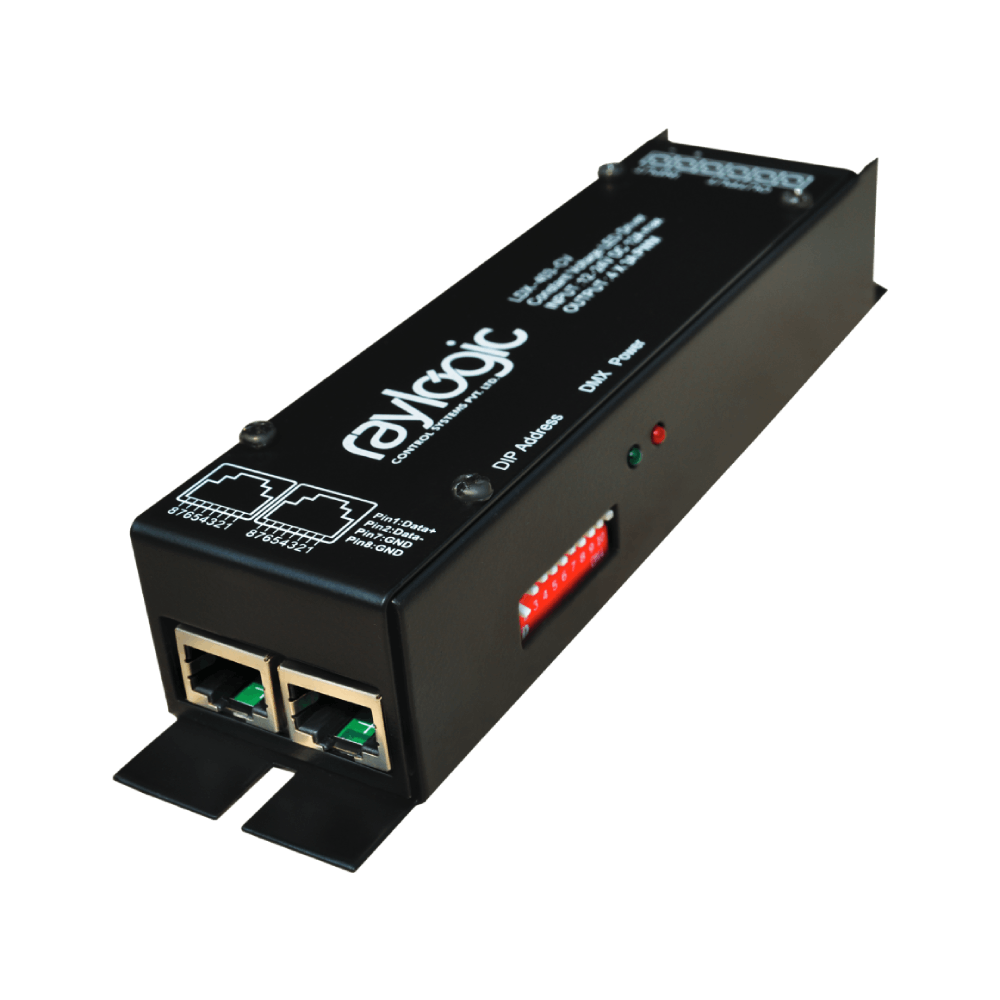

    LDX-403-CV
    LDX-403-CV-1

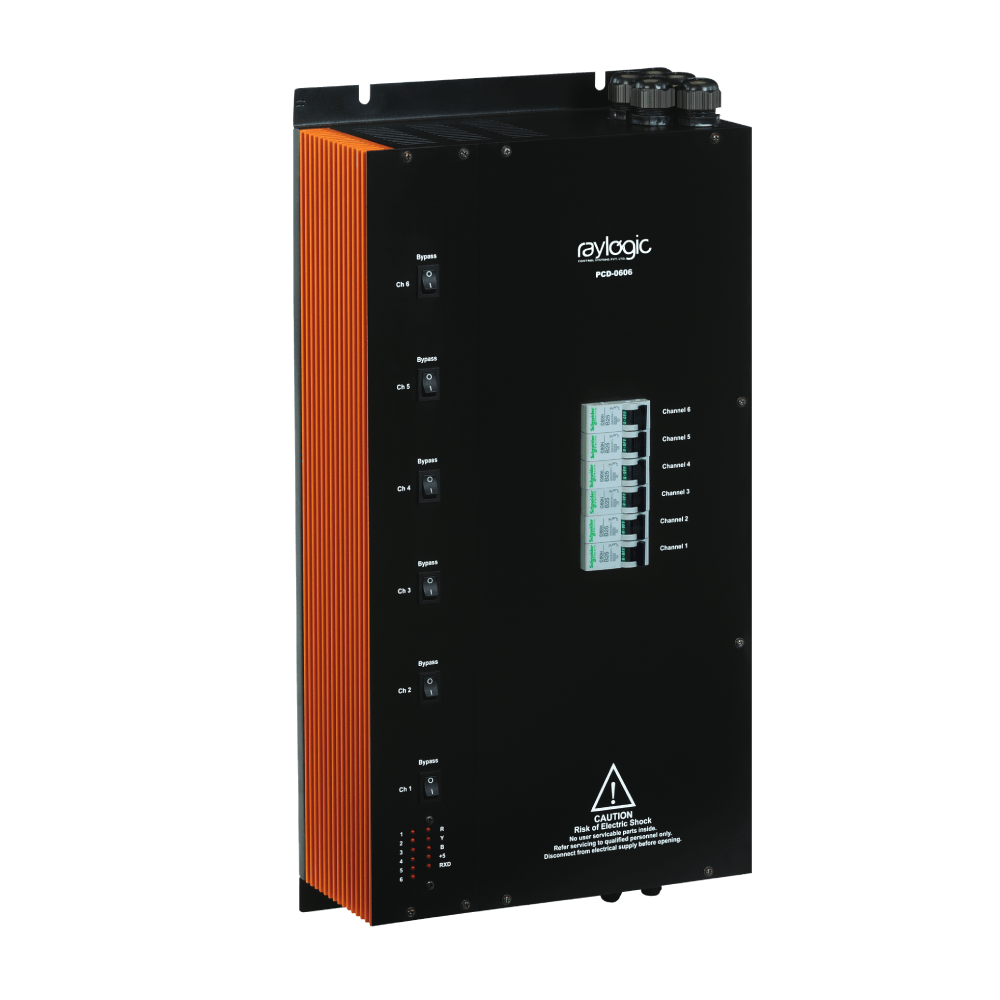

    PCD-0605-1

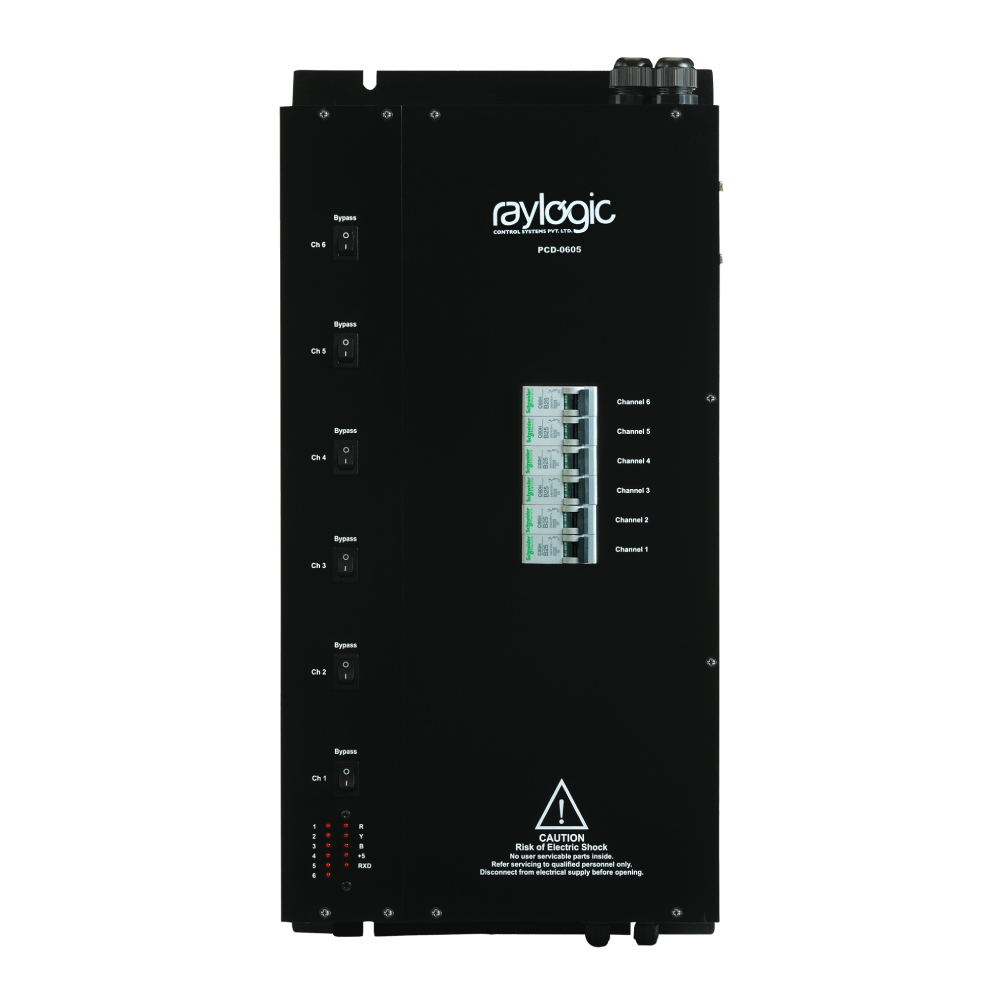

    PCD-0605

    PCD-0605/PCD-0610

    Wall mounted 6 channel high capacity dimming system.
    Inbuilt power supply.
    Power supply for up to 2 Raylogic Keypads.
    Width: 300 mm
    Height: 600 mm
    Depth: 100 mm

    6 channels of leading edge dimming controls.
    Max load 5A ( PCD-0605 ) / 10A ( PCD-0610 )
    Suitable for LED lamps with leading edge dimmable drivers
    Max load 5A ( PCD-1205 ) / 10A ( PCD-1210 )

    Suitable for LED lamps with leading edge dimmable drivers
    Maximum number of LED drivers per channel ( PCD-1205)
    Driver rating <= 21W x 25
    Driver rating 21-50W x 12
    LED Strip drivers suitable for Phase cut use.
    Maximum number of LED drivers per channel ( PCD-1205)
    Driver rating <= 150W x 4
    Driver rating 150W-300w x 2

    Direct channel intensity & fade time control.
    Scene fade time programmable between 0 – 250 seconds.
    16 groups or areas.
    Internal non volatile memory for 60 scenes.

    RAYNET RS-485 protocol & command set.
    Third party control via RS-485.
    Inbuilt MCBs ( Miniateure Circuit Breakers )
    Mild steel,powder coated panel construction

    iOS and Android phone control via Touchmate app and Raylogic control system.
    iOS & Android control via the GO app and GRB hardware.
    Control via Raylogic’s Keypads direct on RAYNET BUS.
    Third party switch control via external processor / Raylogic SCI interface.

    Voice control / IFTTT via GO app and GRB hardware.
    Alexa GO Voice Skill
    Google Home GO Voice Action
    IFTTT GO by Raylogic Service
